Micron Cartridge Filter, Micron Cartridge Filter Manufacturers, Micron Water Filter, Spun Filter Cartridges, PP Pleated Cartridge Filter

Water and Process Solutions / Micron Cartridge Filter

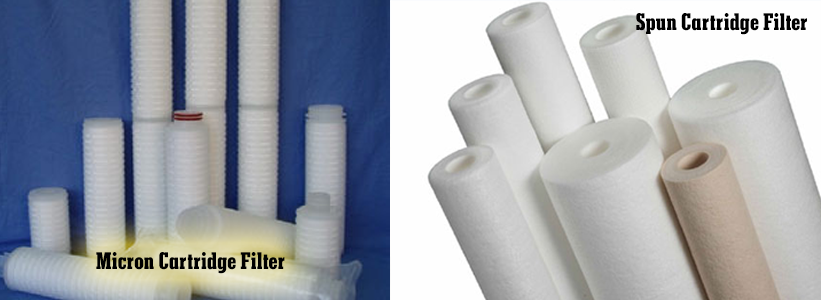

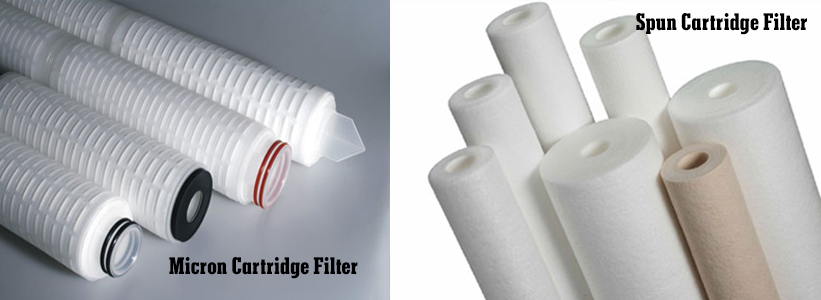

Spun Cartridge Filter- Salient Features

  • Polypropylene fibre and Polypropylene core.
  • Maximum operating temperature 700 C
  • excellent depth filtration due to micron porosity
  • Available in different sizes as per requirement
  • Operating Pressure up to 24 Bar.

Available Size

  • Size : 10", 20", 30", 40",50”,60"
  • Diameter : 2.5", 4" (OD 60-115 mm & ID 27 - 30 mm) C
  • Micron Rating : 1, 5, 10, 20, 50, 100

Application

  • Mainly for Water Treatment - Pre treatment for RO Plant, Sediment Filtration, UV Post Filtration system
  • Also used For Filtration in Pharmaceuticals Formulations, Liquor Production, Dyes and intermediate manufacturing and Textiles
  • Material: PP-polypropylene
  • Outer dia.: 69mm
  • End cap: DOE, SOE
  • Nominal length: 10, 20, 30, 40inch
  • Micron rating: 0.1, 0.2, 0.45, 0.65, 1, 5, 10….100um
